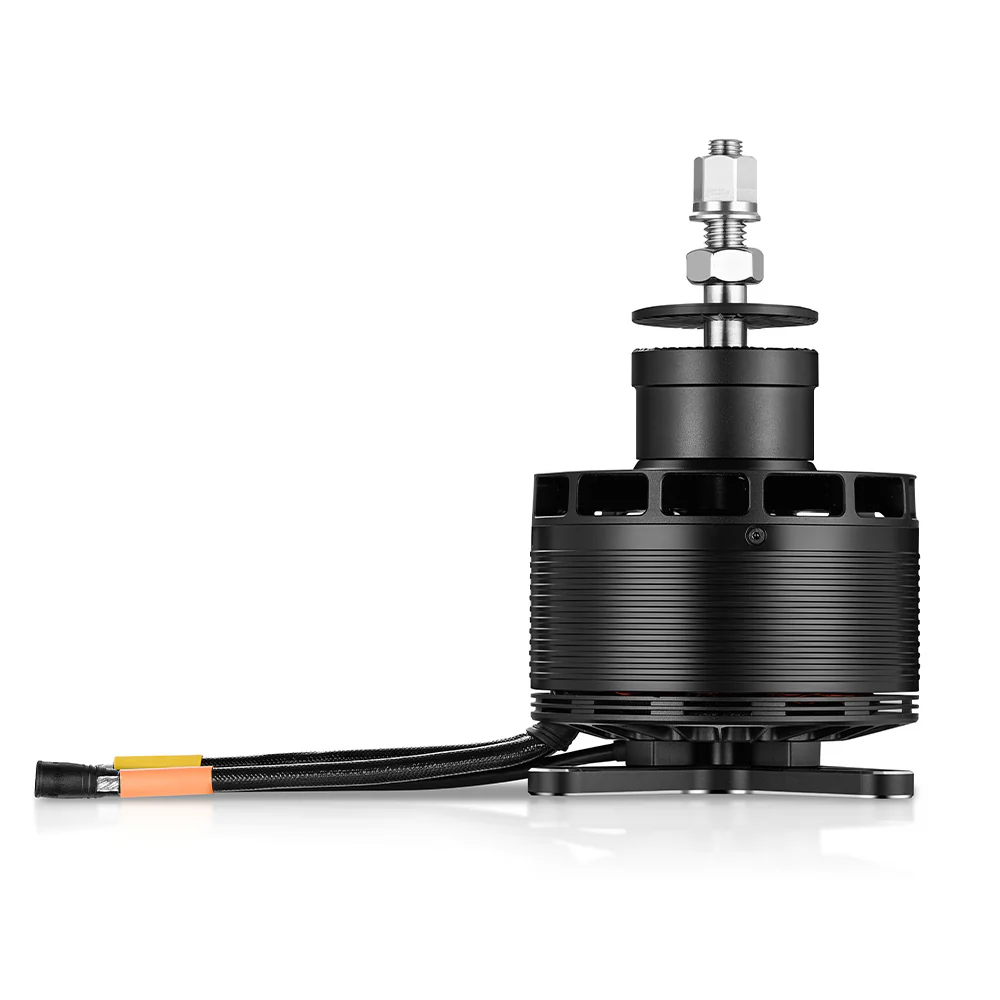

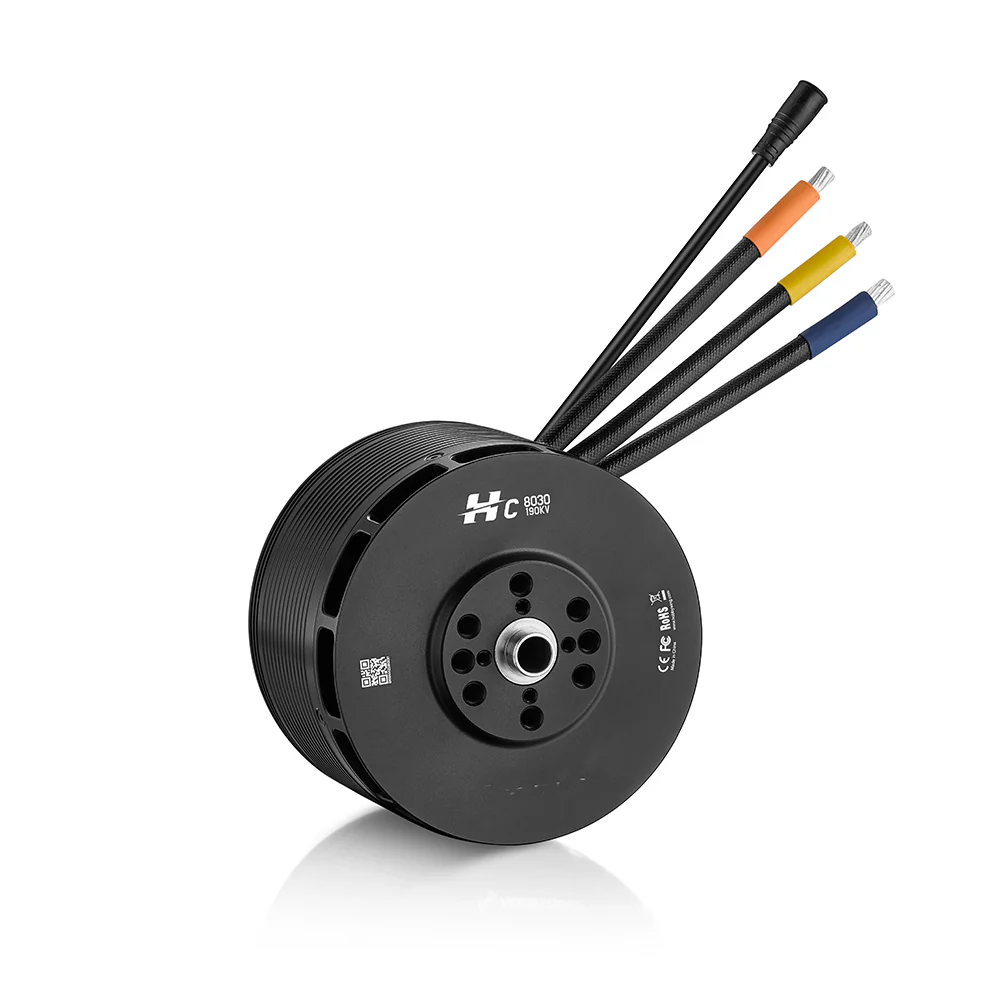

XRotor C8030 IPC Motor
High Powered Fixed-Wing UAV Cruise Motor
C8030 motor, designed for fixed-wing UAV cruise setups, provides up to a maximum thrust of 30.4kg per rotor with 26″ propellers, ideal for setup weighing 45 to 55kg at takeoff. The optional IPC version will allow you to flexibly adjust propeller stop position to reduce forward flight drag and increase flight time when matched with HOBBYWING IPC ESCs.
Specifications
| KV | 160KV | 190KV |
| Motor Size: | Φ89.1*H69.5mm | Φ89.1*H69.5mm |
| Weight W/ wire: | 1115g | 1126g |
|
Battery: |
12S | 12S |
|
Max Thrust: |
30.4kg | 24.7kg |
| Takeoff weight of single: | 45~55kg | 45~55kg |
| Rated power input | 1700W | 1970W |
| Rated power output | 1430W | 1620W |
| Prop: | 25x10/26x12/27x12 | 24x10/25x10 |
| ESC: | XRotor Pro H200A 14S | XRotor Pro H200A 14S |
| C Function: | YES | YES |
High Powered Fixed-Wing UAV Cruise Motor
C8030 motor, designed for fixed-wing UAV cruise setups, provides up to a maximum thrust of 30.4kg per rotor with 26″ propellers, ideal for setup weighing 45 to 55kg at takeoff. The optional IPC version will allow you to flexibly adjust propeller stop position to reduce forward flight drag and increase flight time when matched with HOBBYWING IPC ESCs.
Specifications
| KV | 160KV | 190KV |
| Motor Size: | Φ89.1*H69.5mm | Φ89.1*H69.5mm |
| Weight W/ wire: | 1115g | 1126g |
|
Battery: |
12S | 12S |
|
Max Thrust: |
30.4kg | 24.7kg |
| Takeoff weight of single: | 45~55kg | 45~55kg |
| Rated power input | 1700W | 1970W |
| Rated power output | 1430W | 1620W |
| Prop: | 25x10/26x12/27x12 | 24x10/25x10 |
| ESC: | XRotor Pro H200A 14S | XRotor Pro H200A 14S |
| C Function: | YES | YES |
Original: $304.99
-65%$304.99
$106.75Description
High Powered Fixed-Wing UAV Cruise Motor
C8030 motor, designed for fixed-wing UAV cruise setups, provides up to a maximum thrust of 30.4kg per rotor with 26″ propellers, ideal for setup weighing 45 to 55kg at takeoff. The optional IPC version will allow you to flexibly adjust propeller stop position to reduce forward flight drag and increase flight time when matched with HOBBYWING IPC ESCs.
Specifications
| KV | 160KV | 190KV |
| Motor Size: | Φ89.1*H69.5mm | Φ89.1*H69.5mm |
| Weight W/ wire: | 1115g | 1126g |
|
Battery: |
12S | 12S |
|
Max Thrust: |
30.4kg | 24.7kg |
| Takeoff weight of single: | 45~55kg | 45~55kg |
| Rated power input | 1700W | 1970W |
| Rated power output | 1430W | 1620W |
| Prop: | 25x10/26x12/27x12 | 24x10/25x10 |
| ESC: | XRotor Pro H200A 14S | XRotor Pro H200A 14S |
| C Function: | YES | YES |
