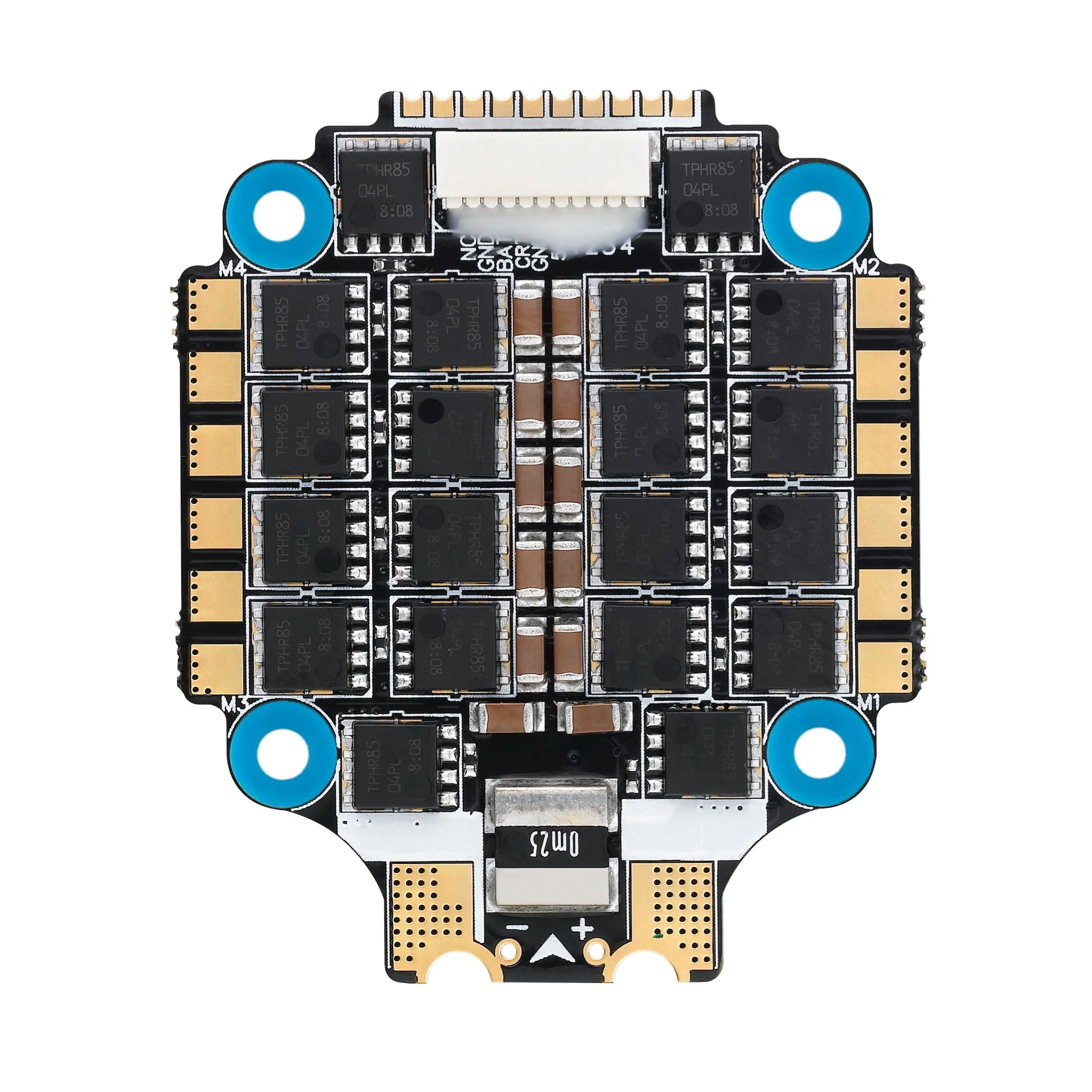

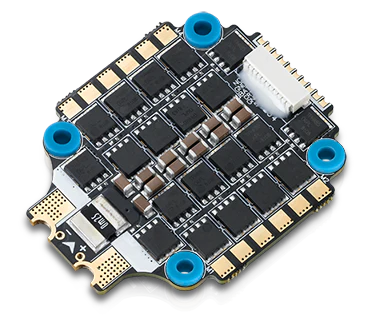

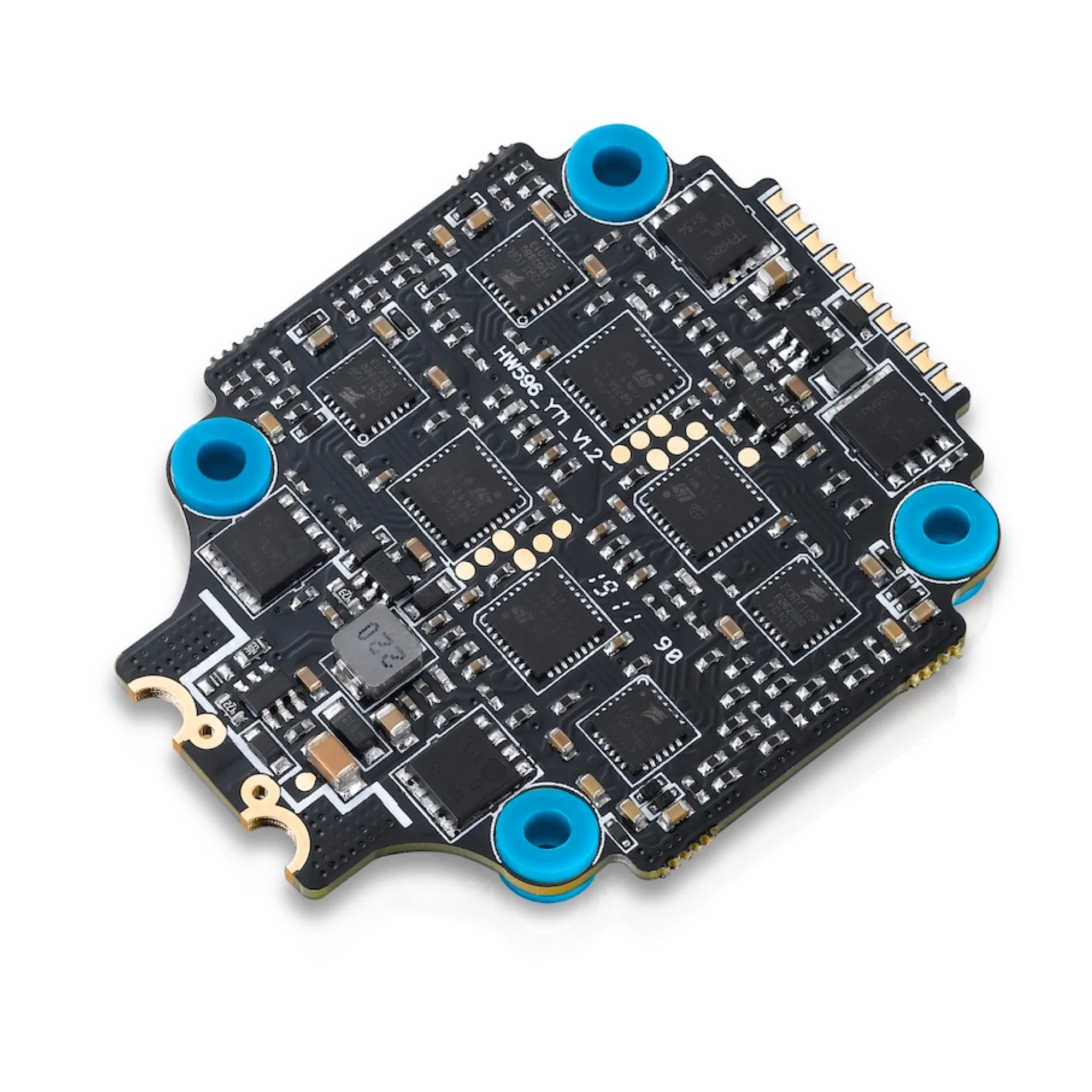

XRotor FPV 30x30 ESC
★★★★★
MSRP $110
BEST yet. - FPV Racing 4in1
Learn more XRotor FPV 30x30 4in1Â ESCÂ >
Specifications:
|
 Model
|
XRotor FPV 30x30 ESCÂ 65A |
|
SKU
|
30902064 |
| Application | FPVs with 130-280mm Diagonal Wheelbase |
| LiPo Power input | 3S-6S |
|
Cont.Current
|
65Ax4 |
| Burst Current | 80Ax4 |
| BEC Output | |
| Input wires | 12AWG-130mm* (Red/Black) |
| Output Wire | No wires but solder tabs |
| Connectors (In/Out) |
XT60 (w/ Wires Soldered on) /no |
| Weight / Size | 15g / 52x42x6.6mm |
| Mounting holes | 30.5x30.5mm |
| Throttle Calibration | Supported |
| ESC Programming | AM32 |
| DEO | Supported |
| OneShot Mode | Supported |
| Timing | Supported |
| Motor Rotation | Supported |
* Note: All the wire length above is the original length, not the length you see from the outside.
Warranty Note
- HOBBYWING products purchased from Hong Kong / Chinese retailers do not confirm CE / North America regulation - deems products non-warranty
- Discount /auction stores such as eBay, etc are considered "non-authorized stores" in North America. Products deem non-warranty
Best match with
- FPV ComboÂ
- FPV Flight Controller
- Xrotor brushless motorÂ
- Azure Power Propellers
- FPV Capacitor
★★★★★
MSRP $110
BEST yet. - FPV Racing 4in1
Learn more XRotor FPV 30x30 4in1Â ESCÂ >
Specifications:
|
 Model
|
XRotor FPV 30x30 ESCÂ 65A |
|
SKU
|
30902064 |
| Application | FPVs with 130-280mm Diagonal Wheelbase |
| LiPo Power input | 3S-6S |
|
Cont.Current
|
65Ax4 |
| Burst Current | 80Ax4 |
| BEC Output | |
| Input wires | 12AWG-130mm* (Red/Black) |
| Output Wire | No wires but solder tabs |
| Connectors (In/Out) |
XT60 (w/ Wires Soldered on) /no |
| Weight / Size | 15g / 52x42x6.6mm |
| Mounting holes | 30.5x30.5mm |
| Throttle Calibration | Supported |
| ESC Programming | AM32 |
| DEO | Supported |
| OneShot Mode | Supported |
| Timing | Supported |
| Motor Rotation | Supported |
* Note: All the wire length above is the original length, not the length you see from the outside.
Warranty Note
- HOBBYWING products purchased from Hong Kong / Chinese retailers do not confirm CE / North America regulation - deems products non-warranty
- Discount /auction stores such as eBay, etc are considered "non-authorized stores" in North America. Products deem non-warranty
Best match with
- FPV ComboÂ
- FPV Flight Controller
- Xrotor brushless motorÂ
- Azure Power Propellers
- FPV Capacitor
Select Title
From $99.99
XRotor FPV 30x30 ESC—
$99.99
Description
★★★★★
MSRP $110
BEST yet. - FPV Racing 4in1
Learn more XRotor FPV 30x30 4in1Â ESCÂ >
Specifications:
|
 Model
|
XRotor FPV 30x30 ESCÂ 65A |
|
SKU
|
30902064 |
| Application | FPVs with 130-280mm Diagonal Wheelbase |
| LiPo Power input | 3S-6S |
|
Cont.Current
|
65Ax4 |
| Burst Current | 80Ax4 |
| BEC Output | |
| Input wires | 12AWG-130mm* (Red/Black) |
| Output Wire | No wires but solder tabs |
| Connectors (In/Out) |
XT60 (w/ Wires Soldered on) /no |
| Weight / Size | 15g / 52x42x6.6mm |
| Mounting holes | 30.5x30.5mm |
| Throttle Calibration | Supported |
| ESC Programming | AM32 |
| DEO | Supported |
| OneShot Mode | Supported |
| Timing | Supported |
| Motor Rotation | Supported |
* Note: All the wire length above is the original length, not the length you see from the outside.
Warranty Note
- HOBBYWING products purchased from Hong Kong / Chinese retailers do not confirm CE / North America regulation - deems products non-warranty
- Discount /auction stores such as eBay, etc are considered "non-authorized stores" in North America. Products deem non-warranty
Best match with
- FPV ComboÂ
- FPV Flight Controller
- Xrotor brushless motorÂ
- Azure Power Propellers
- FPV Capacitor
