XR10 Pro G2S Combo

Product image 1
1 / 10
+5

XR10 Pro G2S Combo

ROAR National | IFMAR World Championship Winning Gears

★★★★★

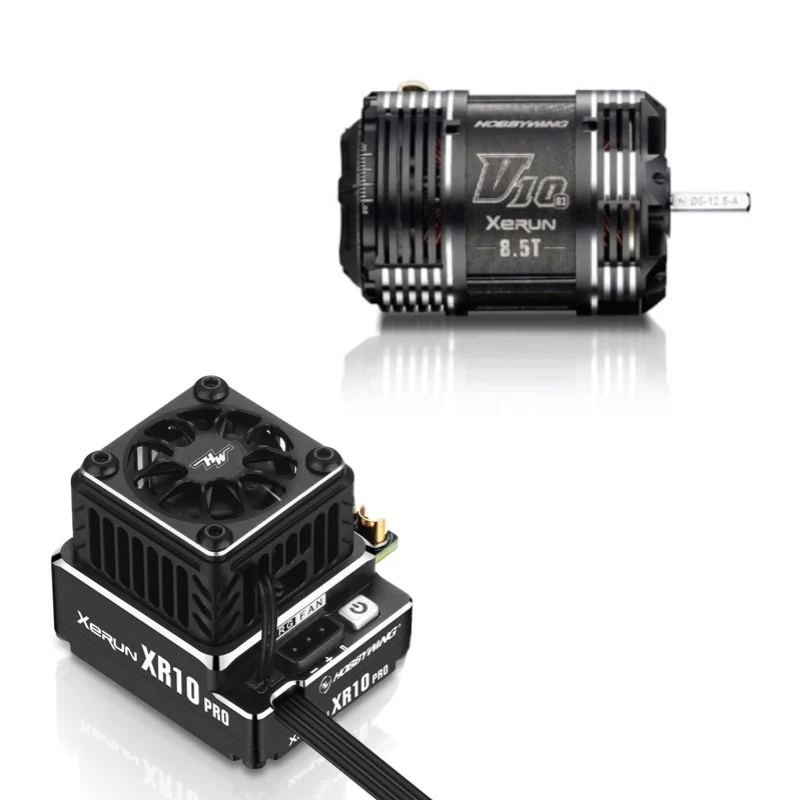

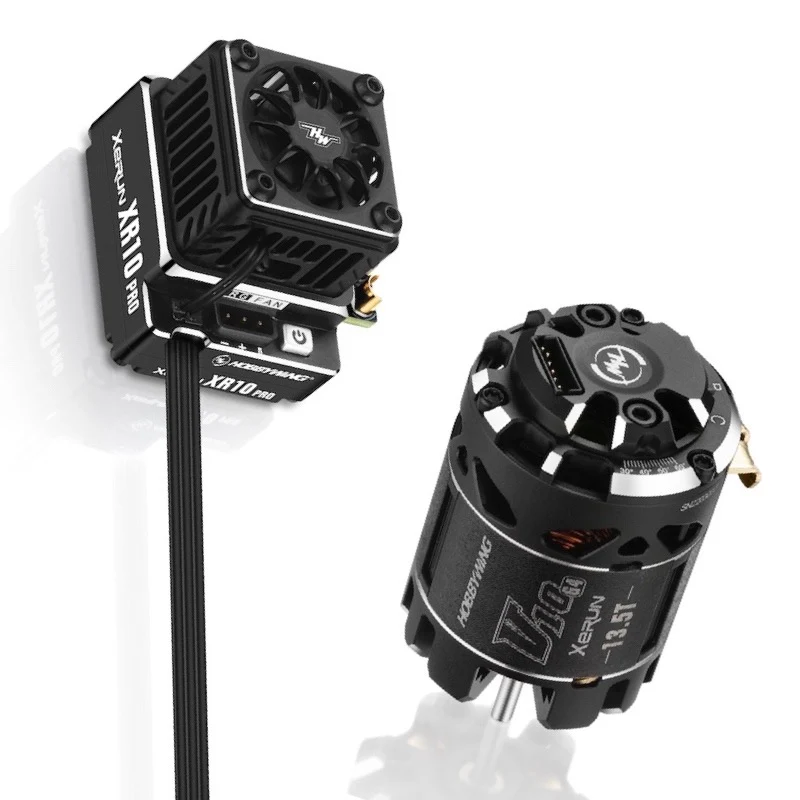

What's in the box?
  • 1x XR10 Pro G2S ESC
  • Depending on the Motor Selection
    1x XERUN V10  Competition Brushless Motor
  • 1x Bonus item(s)
    (2) Input wires & (3) Output wires -PRE-SOLDERED-
    (1)Dual capacitors -PRE-SOLDERED-
    (2) x cooling fan (1 extra)
  • Decal

Modified Editions

P/N
 Motor included in Combo
38020325 V10 4.5T G3 _ ROAR National Champion Gear
38020326 V10 5T G3
38020327 V10 5.5T  G3
38020328 V10 6T  G3
38020329 V10 6.5T  G3
38020330 V10  7T  G3
38020331 V10 7.5T G3
38020333 V10 8.5T G3

Spec Class Editions

P/N
 Motor included in Spec Combo
38020441
V10 13.5T G4R - IFMAR World Champion Gear
38020442
V10 17.5T G4R - IFMAR World Champion Gear
38020443
V10 21.5T G4R
38020336
V10 21.5T G4
30112613B03
V10 25.5T G3R

 *FFD=Frameless Fan Design (Patented)

Learn more >

Modified motors (4.5T-10.5T / 25.5T)

  • 2 POLE Super High-Efficiency brushless motor
  • Diameter/Length (mm): Ø=35.9mm L=51.2mm
  • Shaft Diameter/ Length (mm): Ø=3.17mm L=13.3mm (25.5T L=13mm)

Spec motors (13.5T-21.5T)

  • 2 POLE Super High-Efficiency brushless motor
  • Diameter/Length (mm): Ø=35.8mm (1.41in) L=51.4mm (2.024in)
  • Shaft Diameter/ Length (mm): Ø=3.175mm (0.125in) L=13.9mm (0.547in)
p/n V10 T kv LiPo (Ω) No-load
Current
(A)		 Max.
Output
Power
(W)		 Current
@Max.
Output
Power (A)		 Stock
Rotor		 Weight
(g)
30401102 G3 4.5 7340 2S

0.0029

6.7		 457 122 Φ5-12.3 163
30401116 G3 5 6500

2S

0.0035		 5.5 443 118 Φ5-12.3 159
30401107 G3 5.5 5900

2S

0.0041		 5 426 115 Φ5-12.5 163
30401117 G3 6 5500

2S

0.0048		 4.5 415 113 Φ5-12.5 162
30401109 G3 6.5 5120

2S

0.0056		 3.9 402 113 Φ5-12.5 164
30401118 G3 7 4800

2S

0.0065		 3.5 364 106 Φ5-12.5 161
30401110 G3 7.5 4420

2S

0.0074		 3.3 346 100 Φ5-12.5 161
30401119 G3 8 4200

2S

0.0089		 3.0 320 88 Φ5-12.5 160
30401111 G3 8.5 3970

2S

0.0097		 2.8 298 84 Φ5-12.5 163
30401746 G4R 13.5 4100 1-3S 0.020 5.4A 297 70.7 Φ7-12.5*25.2-HUS 158
30401745 G4R 17.5 3150 1-3S 0.035 4.6A 213 49.4 Φ7-12.5*25.2-HUS 158
30401744 G4R 21.5 2600 1-3S 0.055 4.0A 166 37.7 Φ7-12.5*25.2-HUS 158
30401133
 G3R
25.5
1780
2-3
0.102
2.1
95
23
Φ7-12.3
-U
145





 G3 motor User's Manual
