MSRP $31.00

"BRUSHED  RE-ENERGIZED"
Specialized Carbon Brushed for extended life
Zero-Cogging Torque Design

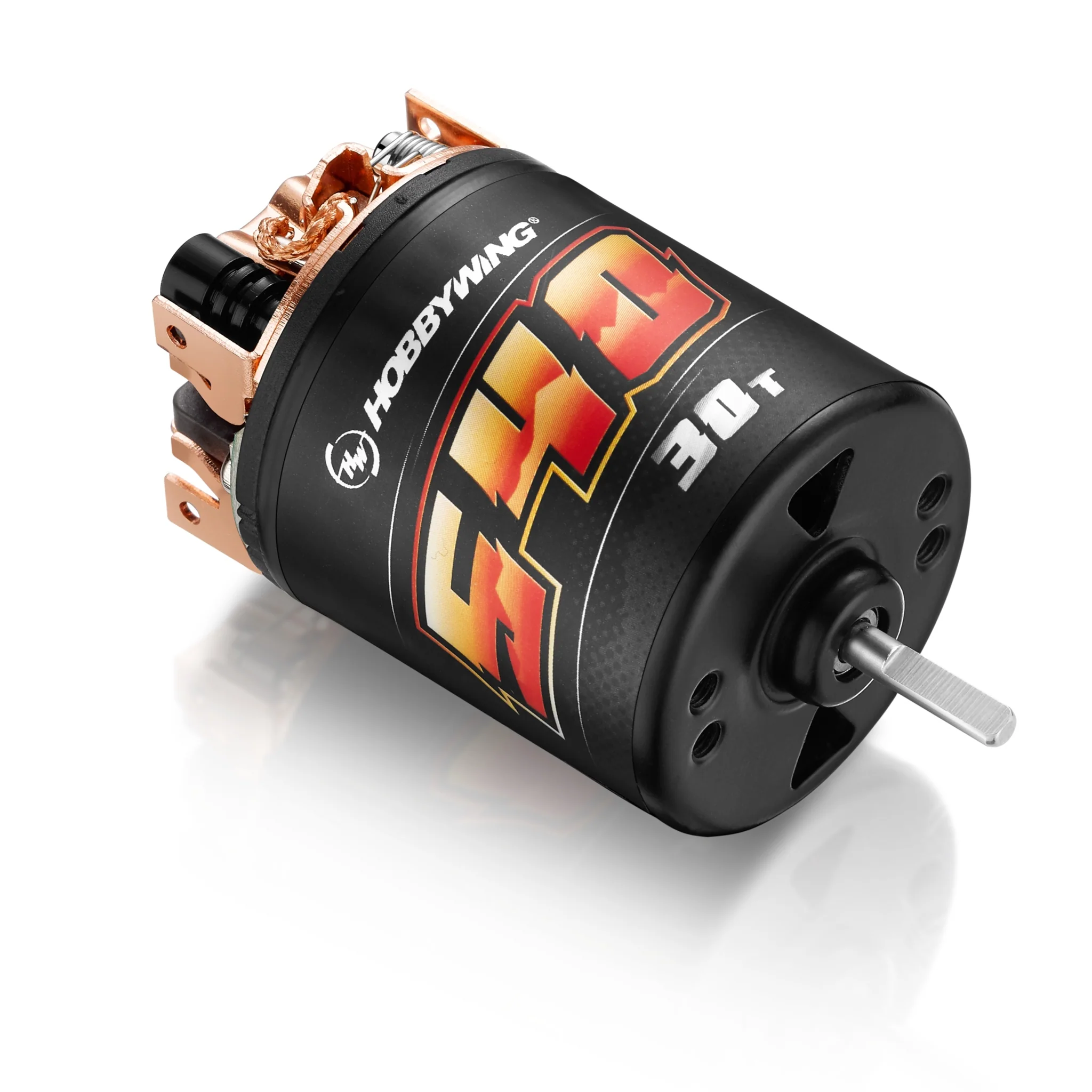

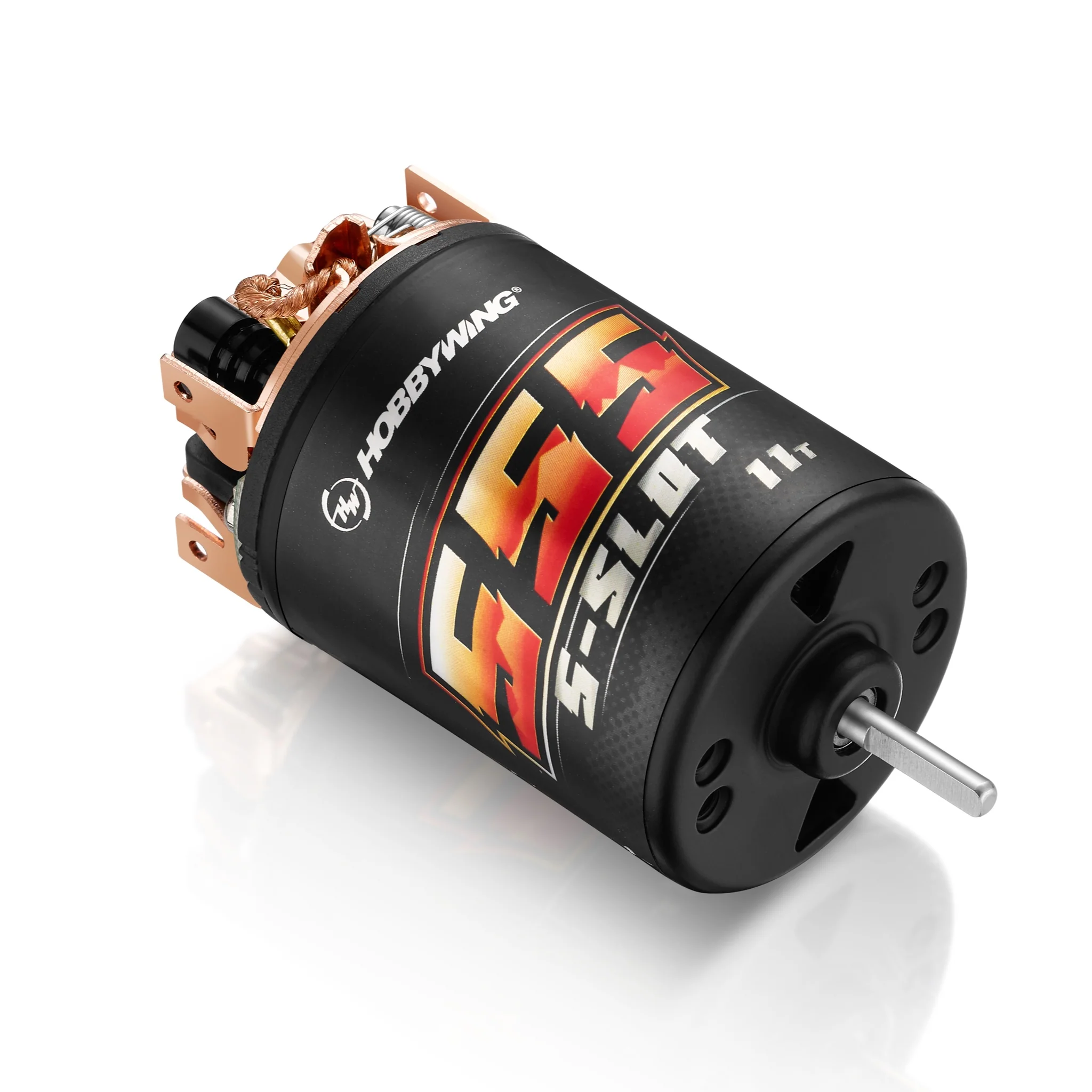

• 540 or 555 can-size
• Excellent efficiency
• Outstanding Response and Control

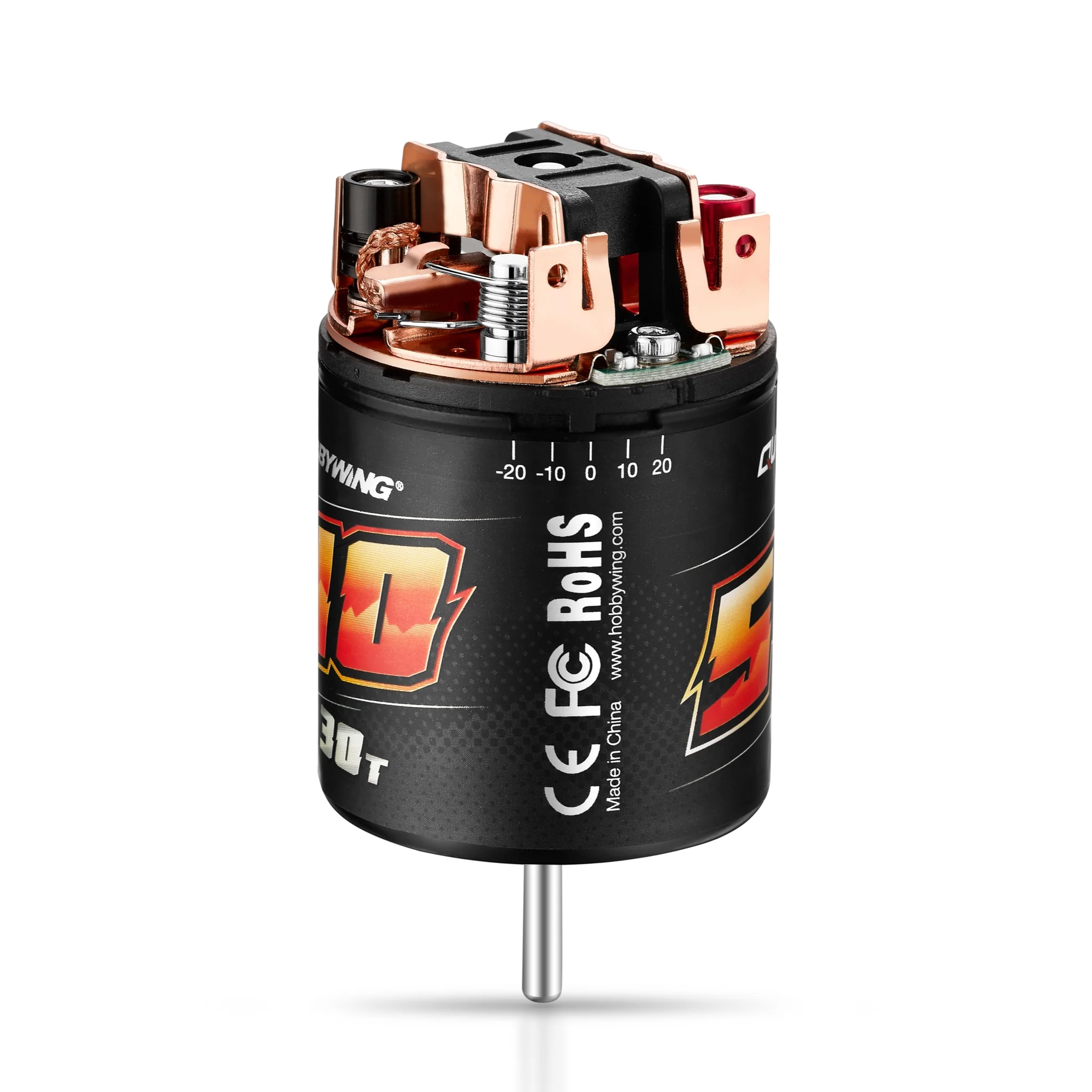

• Adjustable mechanical timing of the motor
• Modular design for easy service and cleaning
• TryOut-n' Trade Program Available

Learn more>

Specification

Model	QUICRUN Brushed 540	QUICRUN Brushed 540	QUICRUN Brushed 555	QUICRUN Brushed 555
PN	30404313	30404314	30404315	30404316
Slot	3	3	5	5
Turns	30T	40T	11T	13T
([email protected])	14000	10500	17000	14000
Input Voltage	12.6V	12.6V	10V	12.6V
Diameter/ Length(mm)	φ=36mm(1.42in) L=53mm(2.09in)	φ=36mm(1.42in) L=53mm(2.09in)	φ=36mm(1.42in) L=58.5mm(2.30in)	φ=36mm(1.42in) L=58.5mm(2.30in)
Shaft Diameter/ Length (mm)	φ=3.175mm(0.125in) L=16.5mm(0.65in)	φ=3.175mm(0.125in) L=16.5mm(0.65in)	φ=3.175mm(0.125in) L=16.5mm(0.65in)	φ=3.175mm(0.125in) L=16.5mm(0.65in)
Applications	1/10 On-road / Buggy / Crawler & 2WD Truck	1/10 On-road / Buggy / Crawler & 2WD Truck	1/10 Crawler / Short course truck / Monster truck	1/10 Crawler / Short course truck / Monster truck
Weight	168g	169g	193g	193g

Manual Download

 User's Manual
