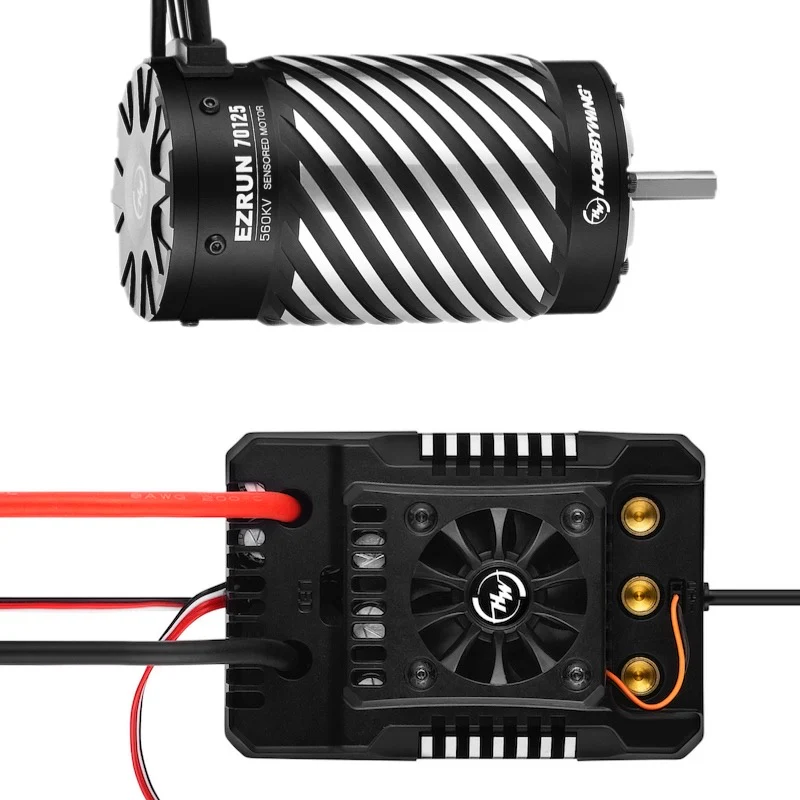

Ezrun MAX4 Combo

Product image 1
1 / 3

Ezrun MAX4 Combo


MAP $$769.99 | MSRP $$1,089

Free Shipping Available

World's Largest : 1/4 - 1/5th MEGA RC vehicle
Off-Road, Truggy, and Monster
What's in the box?
  • (1) Ezrun MAX4 ESC
  • (1) EzRun 70125 560KV Motor
  • (1) Double side tape
  • (2) Heat shrink tube
  • User's manual
  • A HOBBYWING decal
Bottomline:
    • The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice, snow, and water accumulation.
    • Built-in ultra-powerful switch mode BEC with a continuous current of 10A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
    • Equipped with the most advanced and safe electronic switches. The traditional mechanical switch protects and prevents dust, humid and other harsh environments, contact rust, and violent impact (such as flying slope landing)
      caused by the automatic closure of mechanical switches and other issues.
    • Built-in fire-proof circuitry to protect the battery plug, while effectively avoiding damage to the case from electrical sparks (fingers).
    • Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, and current protection.
    • Support LED program card, LCD program box, OTA programmer (Note: optional) to set the parameters of the ESC.
    • Real-time data recording function to view various running data on the HW LINK app using the OTA BT module.
Manual Download
     User's Manual-MAX4 ESC
     User's Manual-70125 Motor
    Related products..
    • OTA Programer
    • LCD Program Box (for PC computer)
    • Accessories
    • HOBBYWING Lifestyle Gears

    > Learn all EZRUN series

    Specification Motor EZRUN MAX Motor


    70125SL-560KV
    PN 30402850
    Pole 4
    KV(No-load) 560KV
    R. (Ω) 0.0050
    Current No-load(A) 3.6
    Motor D.&L(mm) 70mm (2.760in) / 125mm (4.921in)
    Shaft D.&L of the projecting part(mm) 8mm (0.315in) / 30mm (1.181in)
    LiPo(S) 8-12S Lipo
    W (g) 1995g
    Applicable 1/4th, 1/5th Heavy-duty Off-road, Truck.
    Best match with  MAX 4 HV ESC


    EZRUN MAX4 ESC

    MAX 4 (HV)
    Scale Vehicles 1/4 - 1/5th
    Cont./Peak
    Current
    300A/2000A
    Motor Mode Sensored and sensorless brushless motor
    Input 6-12S Lipo
    Motor Limit With 12S Lipo: KV≤600 70125 size motor
    BEC Output 6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
    Programming
    Port
    Share with Fan interface
    Switch Mode Electronic Switch
    Capacitor
    protection
    Yes
    Waterproof Yes
    Size (L.W.H)
    mm
    125 x 85 x 61.7mm
    Weight (g)  775.4g
